ADU 250
Posthole borer for carriers of 8-15 tons
ADU 250
Posthole borer for carriers of 8-15 tons
Know the drill
Based on our Drum Cutter technology, the auger drives are ideal for challenging soil and soft rock drilling operations.
Technical specifications
|
载机重量级 ¹ |
8 t - 15 t |
|
自重 ² |
420 kg |
|
产品重量 |
270 kg |
|
额定功率 |
45 kW |
|
Unit length |
810 mm |
|
Unit diameter |
350 mm |
|
旋转速度 |
40 rpm - 80 rpm |
|
极佳的液压油流动性能 ³ |
40 l/min - 75 l/min |
|
Max. torque ⁴ |
5,2 kNm |
|
油流量，最大 |
85 l/min |
|
最大操作压力 |
350 bar |
More information
ADU with options
ADU with options
Large variety of augers for various applications available
High torque radial piston motor for higher productivity
Quick auger exchange for high flexibility

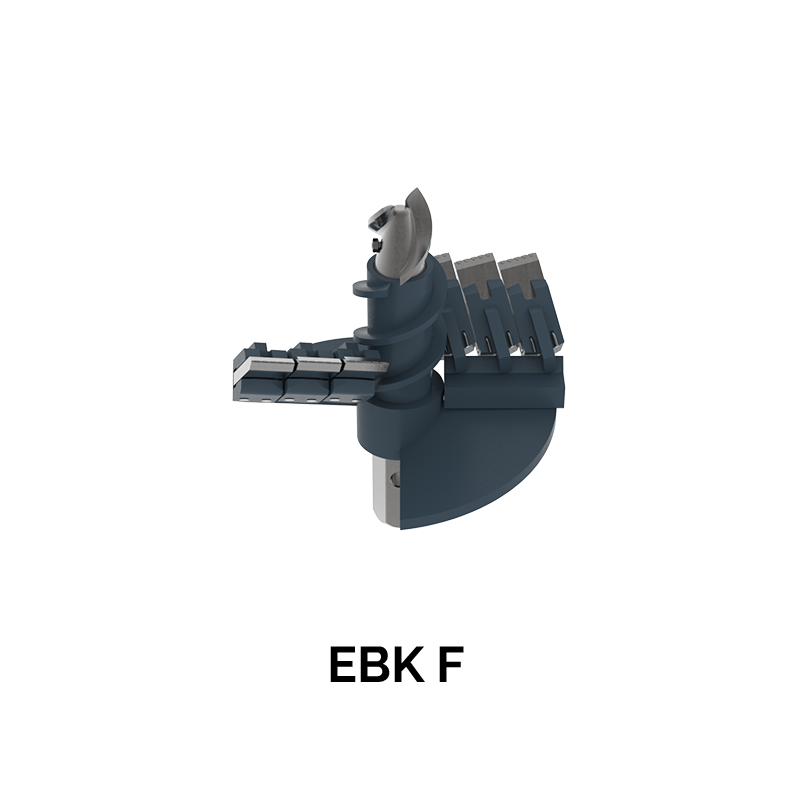

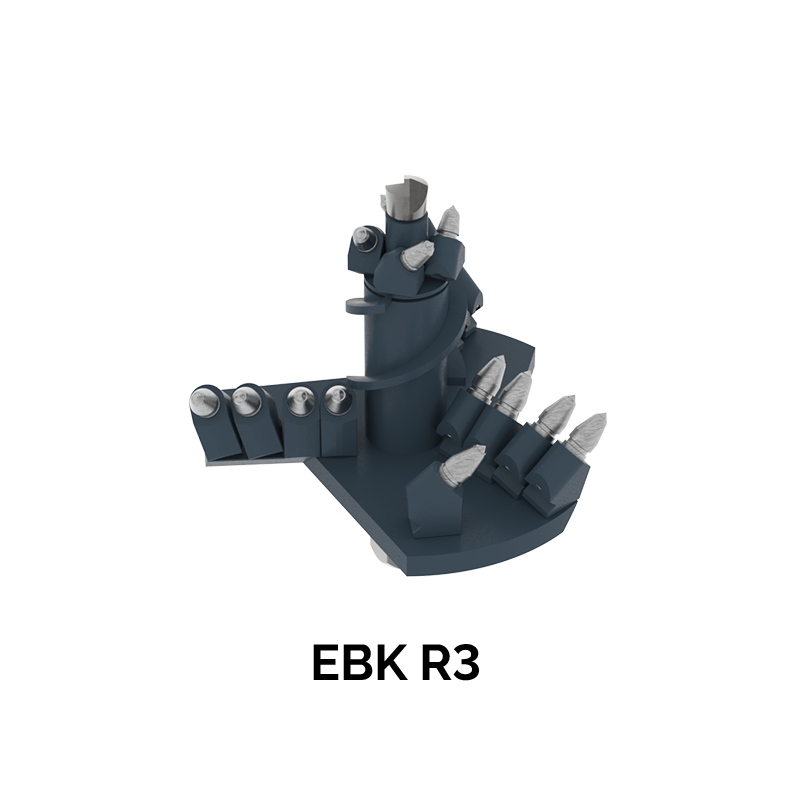

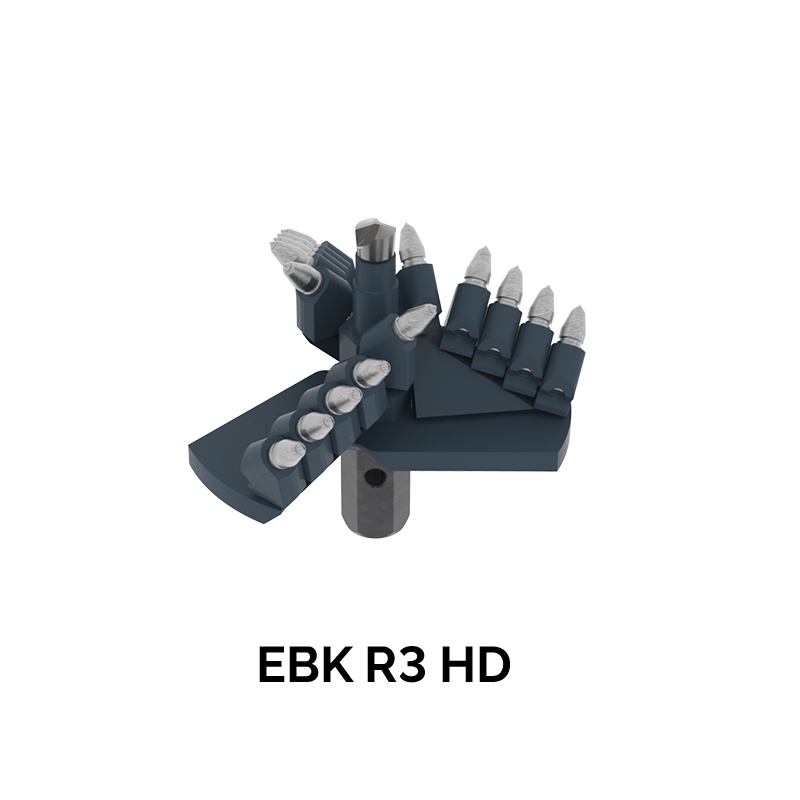

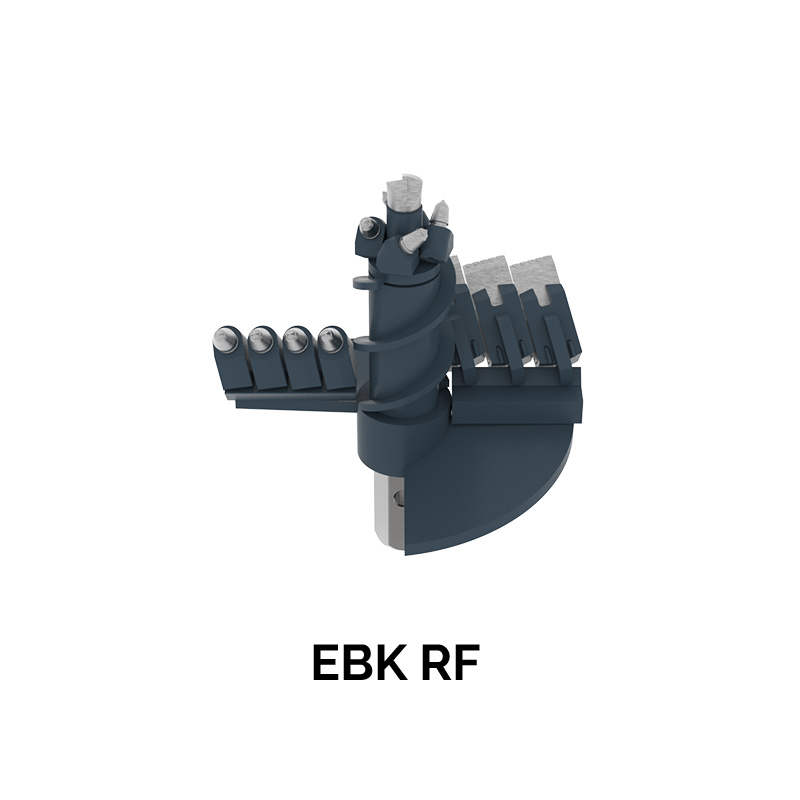

Choice of drill bits for various ground conditions
Soil Classifications
| Classification | Ground conditions | |
|---|---|---|
 |
1 | Topsoil |
| 2 | Liquid Soil | |
 |
3 | Soil easy to excavate |
| 4 | Soil medium hard to excavate | |
 |
4 | Soil medium hard to excavate |
| 5 | Soil hard to excavate | |
| 6 | Rock easy to excavate & similar soil | |
 |
5 | Soil hard to excavate |
| 6 | Rock easy to excavate & similar soil | |
| 7 | Rock hard to excavate (max. 60–80 MPa) |
